Small Coreless Robot Gear Motor 3V 6mm For Car Jacking System , ROHS ISO Lised

Brand Name : Zhaowei
Model Number : ZWPD006006
Certification : ROHS/ISO9001/ISO14001/SGS/TS16949
Place of Origin : China
MOQ : 500pcs
Price : negotiation
Payment Terms : T/T or western Union
Supply Ability : 600,000pcs per month
Delivery Time : 15 working days after payment
Packaging Details : packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing
Product Name : high precision Robot Gear Motor with DC brush motor in robots
Material : Metal, Plastic
Dia : 6mm
Speed Reducing Stages : 2, 3, 4
Rated Load Speed : 40-4669rpm
Rated Load Current : 100mA(MAX)
No Load Speed : 46-6200rpm
No Load Current : 45-60 mA
Rated Torque : 60-120 gf.cm
Gear ratio : 6,26,136,700
Contact Now

3V 6mm Small Coreless Gear Motor For Jacking System Of The Car

Specifications:


Technical Parameter

diameter

6mm

voltage

3V

current

25mA or customized

motor

DC brush motor

torque

60-120gf.cm or customized

speed

47-1200 rpm

reduction ratio

40-4669 or customized

noise level

less than 40dB

life time

500 hours

working temperature

-40 to 95℃

Axial clearance

<0.3mm

Certification

ROHS/ISO9001/ISO14001/SGS/TS16949

Suitable for

Bosch, automobile, phone, Huawei, etc

OSD Language

English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean

The basic specifications for reference only, specifications can be customized.


Description:

ModelTypical Application ParametersMax Rated Torque of Gear BoxMax Instant Torque of Gear BoxGear RatioGear Box Length
RatedAt No LoadAt Rated LoadOverall Length
VoltageSpeedCurrentSpeedCurrentTorque
VDCrpmmA(MAX)rpmmA(MAX)gf.cmmN.mmmgf.cmgf.cmmm
ZWPD006006-63.062004546691001.60.1614601205.144.7
ZWPD006006-263.01200509071007.20.7116.356012026.457.05
ZWPD006006-1363.023555176100302.9418.760120136.029.4
ZWPD006006-7003.0466040100605.8821.056012070011.75

above specifications just for reference and customizable according to requirements


Main Products:


1) Precise component and assembly of plastic and metal powder injection;

2) Precise motor gear box reducer: diameter 4-40mm,

Output speed: 5-2000rpm,

Reduction ratio: 2-2000,

Output torque: 1.0gf-cm to 50Kgf-cm;

3) Customized worm and gear transmission machinery;


4) Precise electromechanical motion module.


Applications:


Automobile unit,

automatic kitchen & toilet,

home appliance,

instrument & meter,

medical appliance,

personal care,

safety monitor,

digital camera,

model aero planes and toy, etc.


Competitive Advantage:


  • 18-year experience in manufacturing motor gearbox
  • Experienced Staff: average 7-year experience in R&D
  • ODM & OEM available
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Lowest Price
  • Product High Performance: Low noise, High efficiency, Long lifespan
  • High precision and large range of application
  • Prompt Delivery
  • Quality Approvals
  • Good Service
  • Small Orders Accepted
  • Partners: HUAWEI, Panasonic, Bosch, SAMSUNG, other World

Fortune 500 companies, etc.

  • Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino

EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.


2D Drawing



product details show:

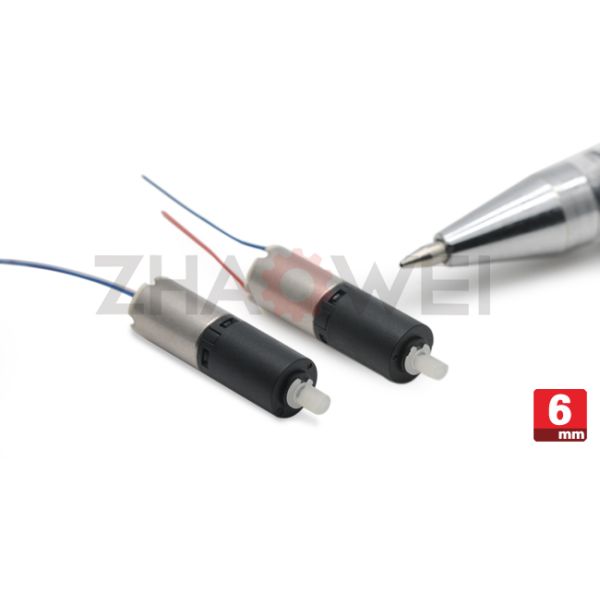

Small Coreless Gear Motor
